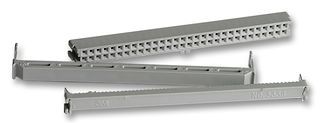

MPN: 3334-6660

SOCKET, IDC, 60WAY; Connector Type:Wire to Board; Series:3000; Contact Termination:IDC / IDT; Gender:Receptacle; No. of Contacts:60; No. of Rows:2; Pitch Spacing:2.54mm; Contact Plating:Gold; Contact Material:Beryllium Copper; SVHC:No SVHC (15-Dec-2010); Approval Bodies:BT 224 Code T; Colour:Grey; Connector Mounting Orientation:Cable; Contact Current Rating:1A; Contact Material:Beryllium Copper (C172); Contact Plating:0.76µ Gold over 1.27µ Nickel; Contact Resistance:20mohm; Cut Thickness for PCBs Max:1.6mm; Flammability Rating:UL94V-0; IDC Cable Pitch:0.05"; Insulation Resistance:1000Mohm; Lead Spacing:2.54mm; Material:Glass Filled Polyester (PBT); Mounting Type:Cable; No. of Mating Cycles:200; No. of Poles:60; No. of Ways:60; Operating Temperature Max:105°C; Operating Temperature Min:-55°C; PCB Hole Diameter:0.89mm; Polarisation Type:Bump; Row Pitch:2.54mm; Termination Method:IDC; Working Voltage:350V
